Detachable Bowl Spiral Mixer

HL-17066KS / HL-17125KS

HL-17066KS / HL-17125KS

Product Character

Feature:
  • As hydraulic-system life safety guard, the mixer is automatically shut off to meet safety requirement. The mixer does only work when the safety guard is down. Stainless steel closed-type guard is standard.
  • High efficiency two-speed assures complete blending dough to give positive results within 15 minutes every time.
  • Positive timers, automatically control mixing time. One for slow speed and the other one for high speed. In case of timers failure, machine still can run with special switch.
  • New, special mixing technology, synchronized speed with reverse turning bowl, intensively kneads dough downward keep dough cooler and higher efficiency effects.
  • Positive spiral mixing provides dough with water absorption ability and much more volume to assure more uniform texture.
  • Powerful, long life motor itself can change speed, without shifting gears, with minimum maintenance required.
  • Bowl has two rotary directions available, forward and backward.
  • Strong stainless steel spiral-agitator, guide bar, and bowl are designed to meet baking industry sanitation standard.
  • 2 heavy duty motors, one to drive spiral, one to drive bowl.

Specifications

Model No. Capacity Dimensions(mm) Net Weight Motors
Flour Dough Bowl A B C D E F Arm Bowl
HL-17066KS 66 kg 120 kg 180 L 1380 900 770 850 1857 1704 1133 kg 8.5 HP 3 HP
HL-17125KS 125 kg 180 kg 240 L 1454 850 898 907 2191 1856 1591 kg 15 HP 5 HP

* Any three phase is available, please specify voltage when ordering.

* Due to product improvement, specifications are subject to change without notice.

* 1 Quart = 0.95 Liter

HL-17066KS

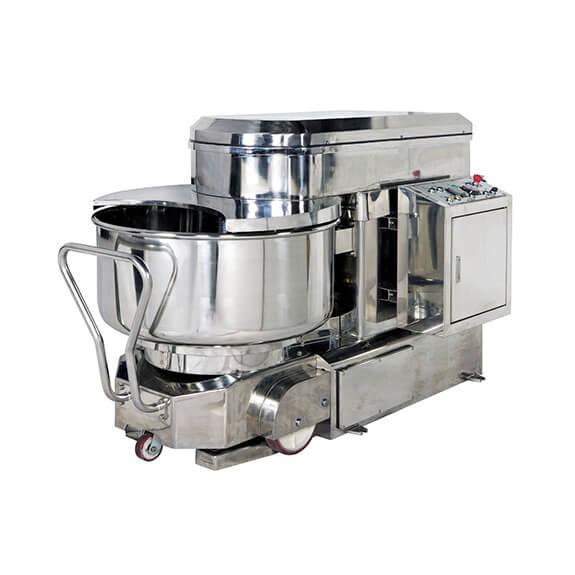

HL-17125KS
