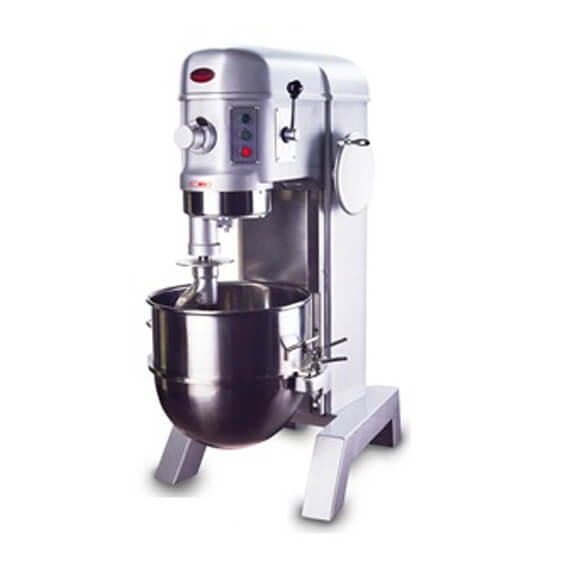

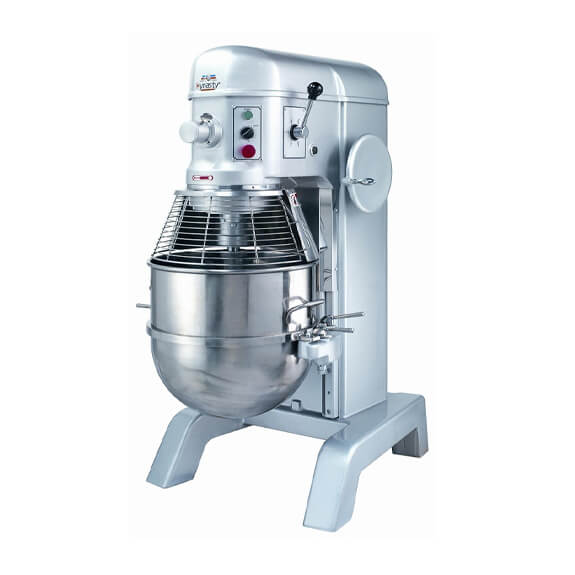

60 Quart Gear Driven Mixer

HL-11091
60 Quart Gear Driven Mixer
60 Quart Gear Driven Mixer

HL-11091

Product Character

  • Stand Model
  • Four Fixed Speeds
  • Easy Speed-shifting
  • 100% Gear Driven
  • Long-life Gearbox
  • Heavy-duty Construction
  • Powerful Motor
  • #12 Hub

Standard Accessories

  • Spiral Dough Arm
  • Flat Beater
  • Wire Whip
  • 60 Quart Bowl
  • Bowl Truck

Optional Accessories

  • 30 Quart Bowl
  • 30 Quart Spiral Dough Arm
  • 30 Quart Flat Beater
  • 30 Quart Wire Whip
  • Timer
  • Safety Guard
  • Vegetable Slicer Attachment
  • Meat Grinder Attachment
  • Digital Control Panel
  • Power Lift
  • Scraper

Specifications

Model No. Bowl Capacity Motor Agitator Speeds (RPM) Hub Safety Guard Timer Digital Control Panel Power Lift N.W.
HL-11091 60 Quart
(57 Liter)		 3 HP
2.25 Kw		 60HZ: 101 / 178 / 297 / 523
50HZ: 84 / 148 / 248 / 436		 Std. - - - - 450 Kg (990 Lbs.) ~ 455 Kg (1001 Lbs.)
HL-11091A Std. Std. - - -
HL-11091T Std. - Std. - -
HL-11091D Std. - - Std. -
HL-11091L Std. - - - Std.
HL-11091ATL Std. Std. Std. - Std.
HL-11091ADL Std. Std. - Std. Std.
  • A - Safety Guard
  • T - Timer
  • D - Digital Control Panel
  • L - Power Lift
  • 1 Quart = 0.95 Liter

* The above specifications do not include all possible combinations of optional accessories.

* Available machine voltages are 220-60-1, 220-60-3, 220-50-1, 240-50-1, 380-50-3, 415-50-3.
